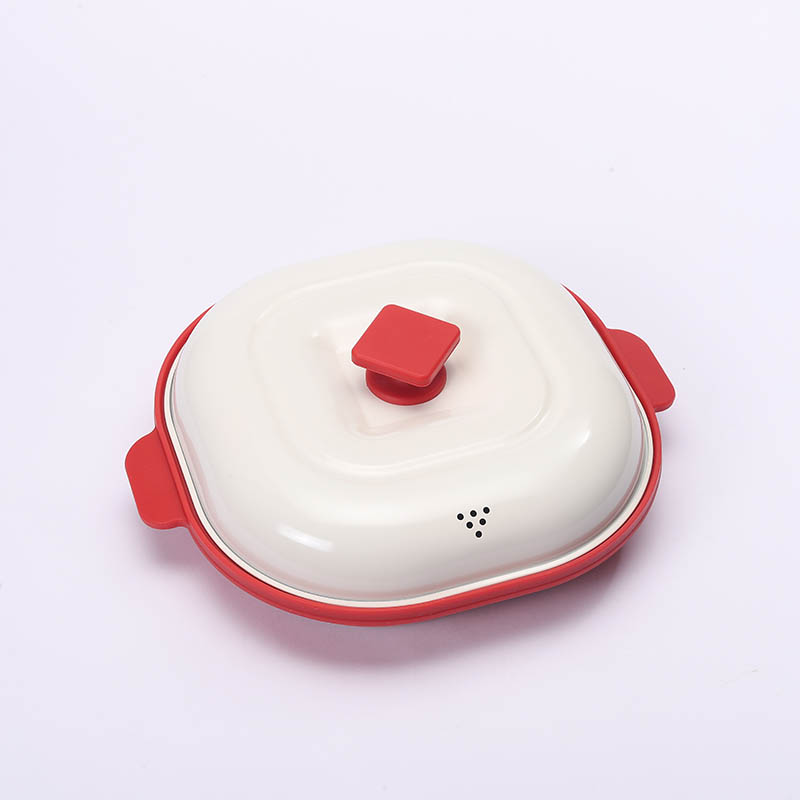

This Large Capacity Microwave Grill Pan with Non-Stick Coating is not an ordinary silicone mold, but a microwave cooking accessory designed to improve heating performance. Its core consists of an aluminized plate with a PTFE non-stick coating, while the outer bottom layer is made of a special heat-conducting material.
Microwaves pass through the heat-conducting layer and act on the aluminized plate, which converts microwave energy into heat. The generated heat is distributed across the cooking surface through the PTFE coating, helping food develop a browned and crisp texture. The silicone layer provides thermal insulation for safer handling and helps maintain stable heating performance.
The carefully engineered multi-layer structure promotes more even heat distribution and reduces localized overheating during microwave cooking.
This microwave grill system is designed with a three-layer functional structure:
The aluminized base is engineered to improve microwave energy utilization by enhancing thermal conduction consistency compared with standard ceramic-bottom cookware.
The structure is optimized for direct microwave heating:
This design improves cooking efficiency and reduces preparation time.
The inner cooking surface uses a food-contact safe non-stick coating system designed to:
All materials are selected for food-contact compliance under LFGB/FDA standards.
To improve heating uniformity in microwave environments:
This improves consistency for foods such as meat, sandwiches, and rice-based meals.
The product features a reinforced double-layer silicone insulation structure:
While the cooking chamber reaches high temperatures during operation, the outer silicone shell is designed to significantly reduce external heat exposure during handling.
For safety, oven gloves are still recommended during use in high-temperature cooking cycles.
| Specifications | Detailed Specifications |
| Product Dimensions (Effective Inner Area) | 200*200*30mm |
| Product Dimensions (Including Silicone Edge) | 268*232*90mm |
| Gross Weight | 711.6g |
| Main Material | Food-grade silicone + Aluminized steel plate + PTFE non-stick coating |
| Maximum Withstand Temperature (PTFE Coating) | 260°C (500°F) |
| Certifications | FDA (Coating), LFGB (Silicone), EU 10/2011(Overall Migration Test) |
Our core differentiator lies in the thickness of the aluminized sheet and the grade of the PTFE coating. The low-end market uses a 0.4mm aluminized sheet, which has low heat capacity, cools quickly, and makes baked goods prone to softening. We offer two options:
1. Standard (Home Use Economy): 0.6mm aluminized sheet + double-layer PTFE coating. Suitable for everyday home use, ≤5 times per week. The non-stick coating has a lifespan of approximately 1.5 years.
2. Professional (Commercial/Heavy Use): 0.8mm aluminized sheet + 4 layers of reinforced PTFE coating (including a high-adhesion resin base layer + wear-resistant ceramic particles middle layer + non-stick topcoat + antibacterial protective layer). Scratch resistance is improved by 300%, suitable for high-frequency use (multiple times daily). We strongly recommend this option for cross-border sellers, as it can reduce return rates by 40%.
Customization Service: Pantone color customization is available for the silicone outer edge; silver ion antibacterial formula can be added to the PTFE coating (additional cost).
1. Reheat Frozen Semi-finished Products (Largest Market): Frozen chicken nuggets, fries, pizza, spring rolls. Microwave directly for a crispy crust, comparable to deep-frying, but healthier and oil-free. Perfect for convenience stores and office break rooms.
2. Breakfast Cooking: Make crispy-bottomed dumplings, crispy bacon, and sunny-side-up eggs in 3 minutes. No need for a separate frying pan.
3. Low-Fat Healthy Meals: Utilizing the non-stick properties of PTFE and the constant temperature of the aluminized plate, almost no oil is needed when cooking salmon and steak. The fat naturally renders and flows into the grooves of the baking pan (our baking pan has an oil-guiding groove design on the edge).
4. Creative Baking: Make microwave-safe crispy egg tarts and cookies with a crispy bottom. The stable bottom heat provided by the metal layer is key to success.
1. Factory Scale: Located in Cixi Andong Industrial Zone, with an independent workshop dedicated to the production line of microwave-safe multi-functional cooking pots.
2. Core Technology: We possess our own PTFE coating sintering line (temperature control ±2°C). Most competitors outsource spraying, resulting in uncontrollable quality. We maintain our own control.
3. Certifications: We hold ISO9001:2022, BSCI, LFGB (silicone portion), and FDA & EU 10/2011 (PTFE coating portion). Important Note: Our PTFE coating is PFOA-free (perfluorooctanoic acid, a potential carcinogen) and complies with the latest EU environmental standards.
4. Main Markets: Japan (40%, they are the most discerning about crispy coating texture), USA (30%), Europe (20%). Our clients include Lawson convenience stores in Japan (customizing crispy fried chicken baking trays for their stores).
5.Testing Capabilities: We have our own coating adhesion tester (cross-hatching method), microwave leakage detector, and thermal imaging uniformity testing platform.
Our control process is divided into four key stages:
1. Incoming Quality Control (IQC) of Aluminized Sheets: Thickness is checked (vernier calipers, tolerance ±0.02mm) and microwave reflectivity (using a network analyzer). Insufficient thickness → Inadequate heat retention → Food not crisp.
2. Online Quality Control (IPQC) of PTFE Coating: After spraying and before sintering, the coating thickness is checked using an eddy current thickness gauge. The standard is 25-35 micrometers. Too thin → not scratch-resistant; too thick → prone to cracking. A 30-second video recording is kept for each batch.
3. Heat Peel Test (OQC - Key Item): Three pieces are randomly selected from each batch of finished products and placed in a 900W microwave oven under no-load conditions (the most stringent conditions, no food absorbs microwaves, all energy is absorbed by the aluminized sheet) for 2 minutes. Check for coating blistering, peeling, or separation of silicone from the metal. Only products that pass this test can leave the factory.
4. Finished Product Inspection (Visual + Tactile): All Large Capacity Microwave Grill Pan with Non-Stick Coatings undergo 100% manual inspection, with a focus on checking the PTFE coating for bubbles, particles, and scratches. The rejection rate is strictly controlled to within 5%, and unqualified products are directly crushed and recycled.
Our microwave grill multi-pot series complies with international food safety standards:
1. PTFE Coating: EU 10/2011 (EU Regulation on Plastics for Food Contact)
2. Silicone Outer Layer: German LFGB (including sensory testing to ensure no odor), FDA 21 CFR 177.2600
3.Factory System: ISO9001:2022 (Quality Management), BSCI (Social Responsibility)
Q1: This Large Capacity Microwave Grill Pan with Non-Stick Coating contains metal. Is it safe to use in a microwave?
A1: Yes, when used according to the instructions. This product is designed specifically for microwave use. The aluminized plate is fully enclosed within the product structure and is engineered to work with microwave energy under specified operating conditions. To ensure safe use, do not use the product in microwave grill mode unless specifically stated in the product manual, do not operate the microwave empty, and do not place additional metal objects in the microwave during use. Always follow the operating instructions provided with the product.
Q2: How does it compare with ordinary microwave-safe ceramic trays?
A2: Traditional ceramic trays mainly transfer heat through heat storage, while our multi-layer structure is designed to improve heat transfer efficiency and surface browning performance. The aluminized plate and PTFE-coated cooking surface help generate and distribute heat across the food-contact area, supporting improved texture and browning compared with many conventional microwave-safe trays. Actual cooking results may vary depending on food type, microwave power, and cooking time.
Q3: Is the PTFE coating safe?
A3: PTFE (polytetrafluoroethylene) is a widely used non-stick coating material. Under normal operating conditions and within the recommended temperature range, the coating remains stable and suitable for food-contact applications. Our coating materials comply with applicable food-contact requirements, and relevant testing reports are available upon request. Please avoid overheating or using the product outside its intended operating conditions.
Q4: Is the coating durable?
A4: The non-stick coating is designed for regular household use. To maximize service life, we recommend using silicone, wooden, or nylon utensils and avoiding sharp metal tools. Proper cleaning and maintenance will help preserve the coating's performance. If significant coating damage occurs, discontinue use and replace the product.
Q5: Can it be used on an induction cooker, gas stove, or other heating appliances?
A5: No. This product is designed exclusively for microwave ovens. It is not suitable for induction cookers, gas stoves, electric hotplates, ovens, or open-flame heating. Using the product outside its intended application may damage the product and create safety risks.
Q6: Is any special preparation required before first use?
A6: Before first use, wash the product with warm water and a mild detergent, then dry thoroughly. No special seasoning process is required. Following the cleaning and maintenance instructions in the user manual will help maintain optimal non-stick performance.
1. Packaging: Each product, after assembly, is placed in an OPP bag, packaged together with the instruction manual in a color box, and finally boxed.
2. Minimum Order Quantity and Delivery Time: MOQ 2000 pieces.
Production cycle: 20-25 days.
PTFE coating spraying and sintering requires 5 days (to ensure coating curing quality, it must pass through the oven slowly; rushing is not possible).
3. Sampling Process: Provide existing samples (free, freight collect) → Mold opening after confirmation (mold fee $500 USD, refundable upon reaching 5000 pieces) → First sample (7 days) → Mass production after confirmation.
4. Shipping Documents: Included with the shipment: Commercial invoice, packing list, copy of LFGB test report, coating safety declaration, certificate of origin (FORM E processing for tariff reduction can be assisted).
